TAPPET CONSTRUCTION[ZJ, ZY, Z6]

id0110b1102200

•  The tappet is shimless and integrated with the shim.
•  Friction has been reduced on the tappet surface by improvement in the precision of fineness finishing of the camshaft attachment surface.
•  The valve clearance can be adjusted by replacing the tappet. The tappet type can be determined by its engraved identification mark.

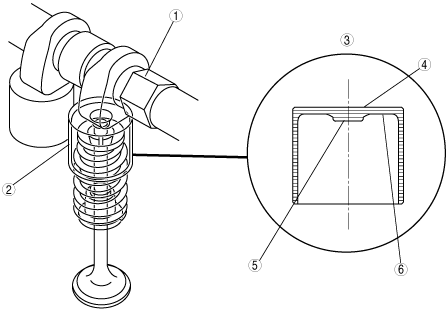

b3e0110t008

1
Camshaft
2
Tappet
3
Tappet cross-sectional view
4
Cam lob contact surface
5
Valve stem contact surface
6
Identification mark position
