OIL CONTROL VALVE (OCV) CONSTRUCTION[ZJ, ZY, Z6]


id0110b1102400

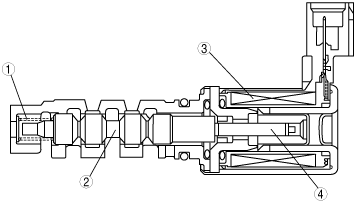

•  The OCV consists of a spool valve that switches the passages for engine oil, a coil that moves the spool valve, a plunger, and a return spring.
b3e0110t030

1
Return spring
2
Spool valve
3
Coil
4
Plunger
