DRIVE BELT CONSTRUCTION[ZJ, ZY, Z6]

id0110b1102500

•  A serpentine-type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.
•  A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.

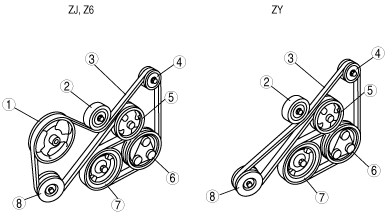

am3zzn00001367

1
P/S oil pump pulley
2
Idler pulley
3
Drive belt
4
Generator pulley
5
Water pump pulley
6
A/C compressor pulley
7
Crankshaft pulley
8
Auto tensioner pulley
