OIL CONTROL VALVE (OCV) INSPECTION[ZJ, ZY, Z6]

id0110b1801400

Coil resistance inspection

1.  Remove the battery cover.

2.  Disconnect the negative battery cable.

3.  Disconnect the OCV connector.

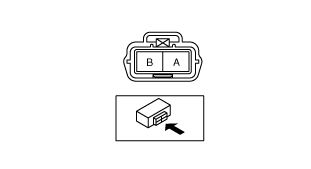

4.  Measure the coil resistance between terminals A and B using a tester.

am3zzw00001871

•  If not within the specification, replace the OCV.

5.  Connect the OCV connector.

Spool Valve Operation Inspection

1.  Remove the battery cover.

2.  Disconnect the negative battery cable.

3.  Remove the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION[ZJ, ZY, Z6].)

4.  Verify that the spool valve inside the OCV is at the maximum valve timing retard position as shown in the figure.

am3zzw00001872

•  If it cannot be verified, replace the OCV.

5.  Verify that the battery is fully charged.

6.  Apply battery positive voltage between oil control valve terminals A and B, and verify that the spool valve operates and moves to the maximum valve timing advance position.

am3zzw00001871

•  If there is any malfunction, replace the OCV.

Note

•  When applying battery positive voltage between the oil control valve terminals, the connection of the negative and positive cable can be either the A or B terminal.

7.  Stop applying battery positive voltage and verify that the spool valve returns to the maximum valve timing retard position.

am3zzw00001873

•  If it cannot be verified, replace the OCV.

8.  Install the OCV. (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION[ZJ, ZY, Z6].)
