VALVE CLEARANCE ADJUSTMENT [ZJ, ZY, Z6]
id0110b1803300
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)
4. Remove the air cleaner component. (Except U.K. specs.) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
5. Remove the air cleaner case and position the air cleaner cover out of the way with the PCM connector still connected. (U.K. specs.) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
6. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
7. Disconnect the ventilation hose.
8. Remove the cylinder head cover.
9. Remove the drive belt. (See DRIVE BELT REPLACEMENT [ZJ, ZY, Z6].)
10. Remove the engine front cover blind plug shown in the figure.
am3zzw00006290
|

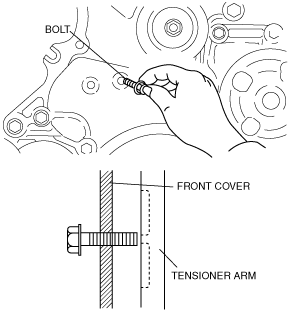

11. Insert a M6 bolt (45 to 80 mm {1.8—3.1 in} length bolt with threads to the end) into the service hole (right side) by hand as shown in the figure. Pull back the inserted bolt approx. 2 mm {0.08 in} from where it contacts the tensioner arm, and set the bolt in a position slightly outward of the tensioner arm.
am3zzw00000321
|
12. Release tension on the timing chain.
am3zzw00000322
|
am3zzw00000323
|
am3zzw00000325
|
am3zzw00000324
|
13. Fix the camshaft using a wrench on the cast hexagon.
am3zzw00000326
|
14. Remove the camshaft sprocket installation bolt.
15. Remove the timing sprocket on the exhaust side with the timing chain positioned out of the way.
am3zzw00000327
|
16. Loosen the camshaft cap installation bolts in 2—3 passes in the order shown in the figure.
am3zzw00000328
|
17. Remove the camshaft caps.
18. Remove the intake and exhaust camshafts.
19. Remove the tappets.
20. Select a proper tappet according to the result of the valve clearance inspection and install it.
Tappet to be selected: thickness of the removed tappet + measured valve clearance – standard valve clearance (0.3 mm {0.0118 in})
21. Align the timing marks on the crank pulley and the engine front cover, and then align the No.1 cylinder to the TDC.
am3zzw00000329
|
22. Install the intake and exhaust camshafts with the No.1 cylinder so that it is near TDC of the compression stroke.
23. Install the camshaft caps to the position shown in the figure, and temporarily tighten the No.2 and No.7 camshaft installation bolts.
am3zzw00000330
|
24. Tighten the camshaft installation bolts in 2—3 passes uniformly in the order shown in the figure.
am3zzw00000331
|
25. Align the sprocket timing marks on the intake and exhaust camshafts so that they form a straight line in alignment with the upper horizontal surface of the cylinder head.
am3zzw00000332
|
26. Fix the camshaft using a wrench on the cast hexagon.
am3zzw00000326
|
27. Tighten the camshaft sprocket installation bolt.
28. Remove the M6 bolt holding the tensioner arm.
29. Verify that there is no slack in the timing chain, and then verify that the marks on the camshaft sprocket and the crank pulley are aligned.
30. Inspect the valve timing by rotating the crankshaft clockwise twice.
31. Install the new engine front cover blind plug.
am3zzw00006290
|
32. Install the drive belt. (See DRIVE BELT REPLACEMENT [ZJ, ZY, Z6].)
33. Install the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
34. Connect the ventilation hose.
35. Install the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
36. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZJ, ZY, Z6].)
37. Install the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)
