ENGINE MOUNT OUTLINE[MZ-CD 1.6 (Y6)]

id0110b2101400

• The pendulum-type layout of the engine mounting reduces noise in the cabin.

• The engine is supported at three points to simplify engine mount composition.

• An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.

• The surface of the No.3 engine mount is made of aluminium alloy to decrease weight.

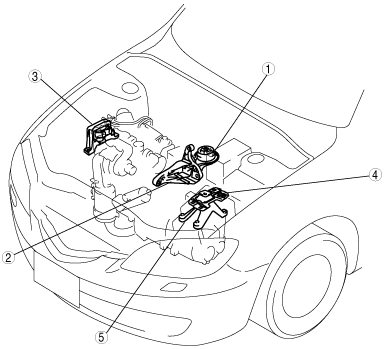

b3e0110t215

1

No.1 engine mount rubber

2

No.1 engine mount bracket

3

No.3 engine mount rubber

4

No.4 engine mount rubber

5

No.4 engine mount bracket
