DRIVE BELT CONSTRUCTION[MZ-CD 1.6 (Y6)]

id0110b2102500

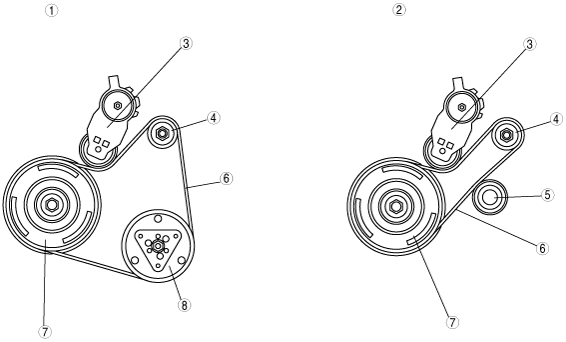

•  A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
b3e0110t213

1
With A/C
2
Without A/C
3
Drive belt auto tensioner
4
Generator pulley
5
Idler pulley
6
Drive belt
7
Crankshaft pulley
8
A/C compressor pulley
