ENGINE MOUNT OUTLINE[L3 Turbo]
id0110b3101400
• The layout of the engine mount is pendulum type, which reduces the noise in the cabin.
• The engine supported at three points, and simplification of engine mount composition parts is attained.
• The No.3 engine mount rubber, which is an oil-filled type, has been adopted to reduce the noise in the cabin.
• The surface of the No.3 engine joint bracket and No.1 engine-mount rubber is made of aluminum alloy to decrease weight.
|

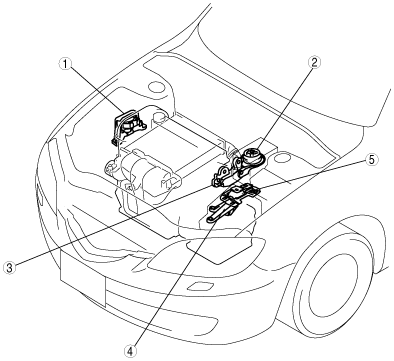

1
|
No.3 engine mount rubber
|
|
2
|
No.1 engine mount rubber
|
|
3
|
No.1 engine mount bracket
|
|
4
|
No.4 engine mount bracket
|
|
5
|
No.4 engine mount rubber
|
