DRIVE BELT CONSTRUCTION[L3 Turbo]

id0110b3102500

•  A serpentine type drive belt with a V-ribbed belt to drive the accessory components has been adopted. This shortens the engine length and improves serviceability.
•  A front drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.

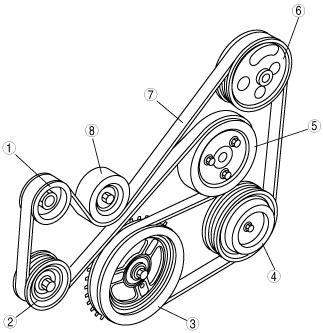

am3zzn00001292

1
Generator pulley
2
Drive belt auto tensioner
3
Crankshaft pulley
4
A/C compressor pulley
5
Water pump pulley
6
P/S oil pump pulley
7
Drive belt
8
Idler pulley
