DRIVE BELT INSPECTION[L3 Turbo]

id0110b3801500

Note

•  Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

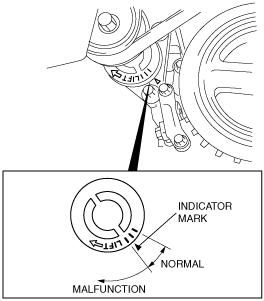

1.  Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

•  If it exceeds the limit, replace the drive belt.

(See DRIVE BELT REMOVAL/INSTALLATION[L3 Turbo].)

acxuuw00000135
