•  Connecting rods are made of carbon steel.

•  Dowel pins are used to position the rod cap to the connecting rod.

•  Connecting rod caps are secured with plastic region bolts.

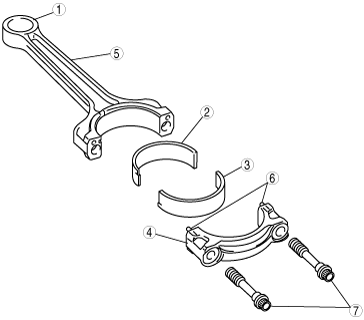

am3zzn00001534

1	Bush
2	Connecting rod upper bearing
3	Connecting rod lower bearing
4	Connecting rod cap
5	Connecting rod
6	Dowel pin
7	Connecting rod cap bolt (plastic region bolts)
