•  The pendulum-type layout of the engine mounting reduces noise in the cabin.

•  The engine is supported at three points and simplification of engine mount composition has been attained.

•  An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.

•  The surface of the No.3 engine mount is made of aluminium alloy to decrease weight.

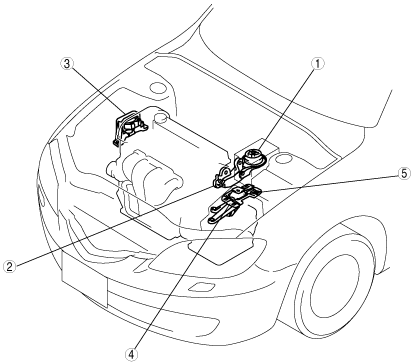

am3zzn00001536

1	No.1 engine mount rubber
2	No.1 engine mount bracket
3	No.3 engine mount rubber
4	No.4 engine mount bracket
5	No.4 engine mount rubber
