ENGINE DISASSEMBLY/ASSEMBLY [MZR-CD (RF Turbo)]

id0110f1800500

1.  Disconnect the engine and transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [A26M-R].)

2.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

3.  Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

4.  Remove the clutch. (See CLUTCH UNIT REMOVAL/INSTALLATION [F35M-R, G35M-R, G66M-R, A26M-R].)

5.  Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

6.  Remove the P/S oil pump. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)

7.  Disassemble in the order indicated in the table.

8.  Assemble in the reverse order of disassembly.

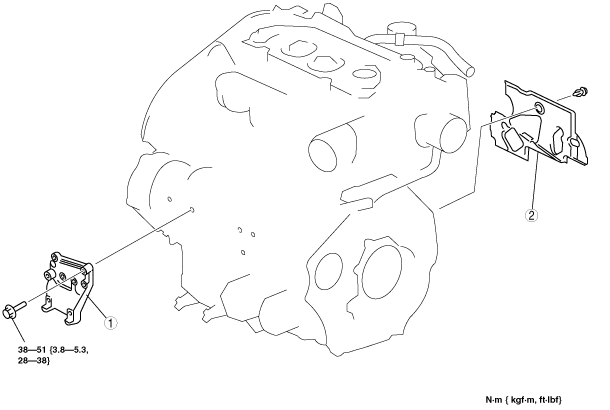

am3zzw00004019

1	A/C compressor bracket (See A/C Compressor Bracket Installation Note.)
2	Seal plate

A/C Compressor Bracket Installation Note

1.  Tighten the A/C compressor bracket bolts in the order shown.

am3zzw00004020
