OIL STRAINER CONSTRUCTION[L3 Turbo]

id0111b4100700

• A plastic oil strainer with a resin filter in the middle of the strainer has been adopted for weight reduction.

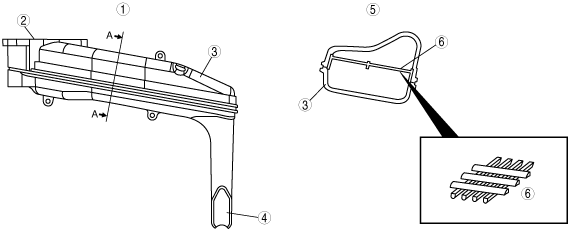

am3zzn00001189

1

External view

2

Oil pump attachment side

3

Oil strainer

4

Oil supply inlet

5

Sec. A‐A

6

Resin filter
