OIL FILTER CONSTRUCTION [L3 Turbo]

id0111b4100800

Oil filter specs.

Item

Specification
Outer diameter
(mm {in})
65.2—65.8 {2.57—2.59}
Height
(mm {in})
72.6—74.4 {2.86—2.92}

•  The oil filter is attached to the right side of the oil level gauge on cylinder block.
•  The oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.
•  A resin oil filter has been adopted for weight reduction. A drain plug has been installed on the bottom of the oil filter to improve replacement serviceability.
•  An environment-friendly oil filter made of incinerable polyester has been adopted. Only the filter paper needs to be replaced.
am3zzn00001504

1

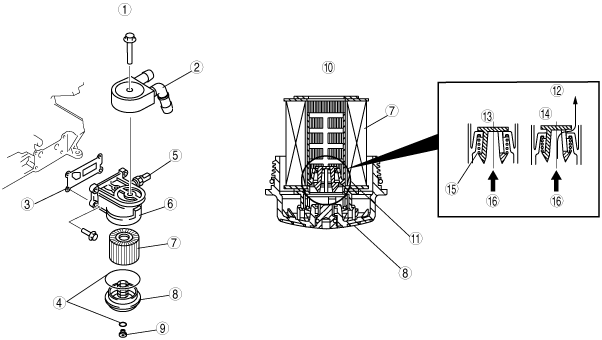

External view
2
Oil cooler
3
Gasket
4
O-ring
5
Oil pressure switch
6
Oil filter adapter
7
Oil filter
8
Oil filter cover
9
Oil filter drain plug
10
Sectional view
11
Relief valve
12
Oil passage
13
Normal
14
Bypass
15
Spring
16
Oil pressure
