OIL COOLER CONSTRUCTION[L3 Turbo]

id0111b4100900

• A water-cooled type oil cooler has been adopted to reduce engine oil degradation.

• The oil cooler is attached to the oil filter adapter.

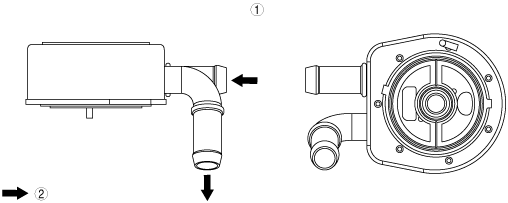

am3zzn00000834

1

External view

2

Engine coolant flow direction
