OIL FILTER COMPONENT CONSTRUCTION [LF, L3]

id0111b5118300


Cartridge Type

Oil filter specs.

Item

Specification
Outer diameter
(mm {in})
65.2—65.8 {2.57—2.59}
Height
(mm {in})
72.6—74.4 {2.86—2.92}

•  The oil filter is attached to the right side of the oil level gauge on cylinder block.
•  The oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.
•  A resin oil filter has been adopted for weight reduction. A drain plug has been installed on the bottom of the oil filter to improve replacement serviceability.
•  An environment-friendly oil filter made of incinerable polyester has been adopted. Only the filter paper needs to be replaced.

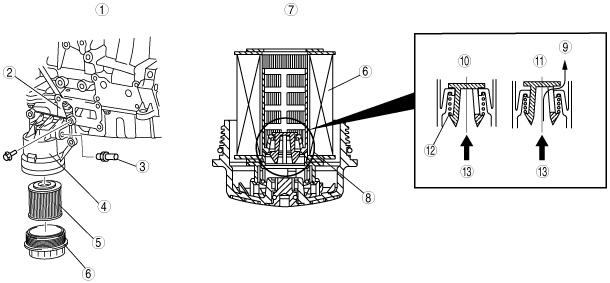

am3zzn00001503

1
External view
2
Gasket
3
Oil pressure switch
4
Oil filter adapter
5
Oil filter
6
Oil filter cover
7
Sectional view
8
Relief valve
9
Oil passage
10
Normal
11
Bypass
12
Spring
13
Oil pressure


Spin-on Type

•  The oil filter is full-flow paper element type with an outer diameter of 76.2 mm {3.00 in} and height of 94.0 mm {3.70 in}.
•  An aluminum oil filter adopter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.
am3zzn00000790

1
Gasket
2
Oil filter adopter
3
Oil pressure switch
4
Oil filter
5
Outer diameter
6
Height
