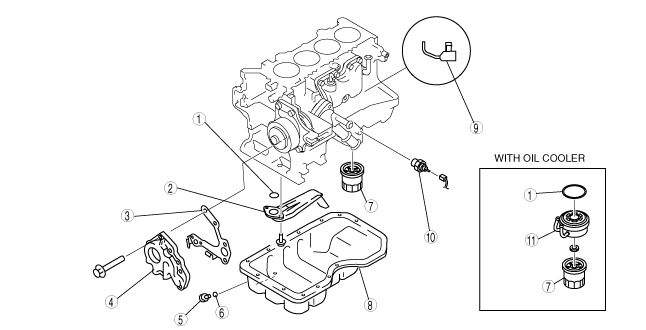

LUBRICATION SYSTEM STRUCTURAL VIEW[ZJ, ZY, Z6]
id0111d1100200
am3zzn00001365
|
|
1
|
O‐ring
|
|
2
|
Oil strainer
|
|
3
|
Gasket
|
|
4
|
Oil pump
|
|
5
|
Oil pan drain plug
|
|
6
|
Washer
|
|
7
|
Oil filter
|
|
8
|
Oil pan
|
|
9
|
Oil jet valve
|
|
10
|
Oil pressure switch
|
|
11
|
Oil cooler
|
