OIL PUMP CONSTRUCTION[MZ-CD 1.6 (Y6)]

id0111d2100600

•  The trochoid gear type oil pump is located at the timing gear end of the engine and driven by the crankshaft directly for noise reduction.
•  The oil pump consists of an oil pump body with a built-in relief valve, inner rotor, outer rotor and oil pump cover.
•  An aluminum alloy oil pump body has been adopted to reduce weight.
•  A pressure relief valve has been built into the oil pump housing.
•  An efficient and compact 9-lobe epitrochoid and 10-flank inner envelope type gear has been adopted for the oil pump.
•  The inner rotor has two flats which form a keyed connection with the crankshaft.

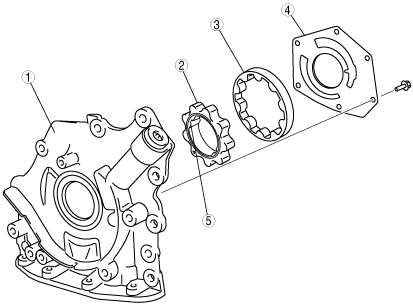

am3zzn00000644

1
Oil pump body (relief valve built-in)
2
Inner rotor
3
Outer rotor
4
Oil pump cover
5
Flat

Oil pump

Item

Engine speed [rpm]

Specification
Oil discharge pressure (approx. quantity)
(kPa {kgf/cm2, psi})
780 (Idle speed)
100—200 {1.02—2.03, 14.5—29.0}
2,000
230—370 {2.35—3.77, 33.4—53.6}
Relief valve opening pressure (approx. quantity) (kPa {kgf/cm2, psi})
500 {5.10, 72.5}
