OIL FILTER COMPONENT CONSTRUCTION[MZ-CD 1.6 (Y6)]

id0111d2118300

• The oil filter component consists of a two-piece housing with replaceable filter cartridge and flange-mounted oil cooler.

• The oil cooler is an oil/water heat exchanger.

• An aluminum oil filter housing has been adopted for weight reduction.

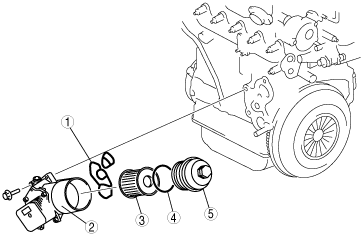

b3e0111t033

1

O-ring

2

Oil filter housing

3

Oil filter cartridge

4

Gasket

5

Oil filter cover
