OIL COOLER CONSTRUCTION [MZR-CD (RF Turbo)]

id0111f1100900

• A water-cooled, 5-layered type oil cooler has been adopted to reduce engine oil degradation.

• The oil cooler is installed on the right surface (vehicle rear) of the cylinder block.

am3zzn00001512

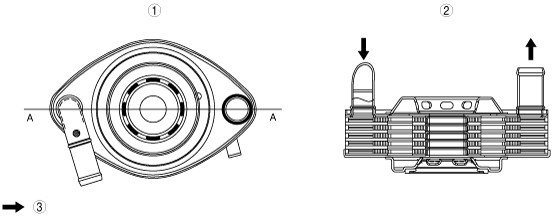

1

External view

2

Sec. A-A

3

Engine coolant flow direction
