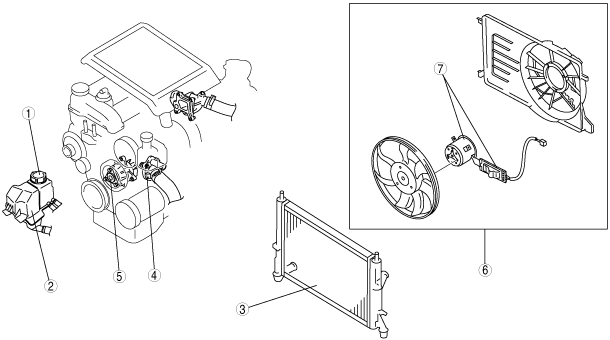

COOLING SYSTEM LOCATION INDEX[L3 Turbo]

id0112b3800100

am3uuw00000303

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION[L3 Turbo].)
2	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION[L3 Turbo].) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION[L3 Turbo].)
3	Radiator (See ENGINE COOLANT PROTECTION INSPECTION[L3 Turbo].) (See ENGINE COOLANT REPLACEMENT[L3 Turbo].) (See ENGINE COOLANT LEAKAGE INSPECTION[L3 Turbo].) (See RADIATOR REMOVAL/INSTALLATION[L3 Turbo].) (See RADIATOR DRAIN PLUG REPLACEMENT[L3 Turbo].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION[L3 Turbo].) (See THERMOSTAT INSPECTION[L3 Turbo].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION[L3 Turbo].)
6	Cooling fan component (See RADIATOR REMOVAL/INSTALLATION[L3 Turbo].)
7	Cooling fan motor component (See COOLING FAN MOTOR COMPONENT INSPECTION[L3 Turbo].)
