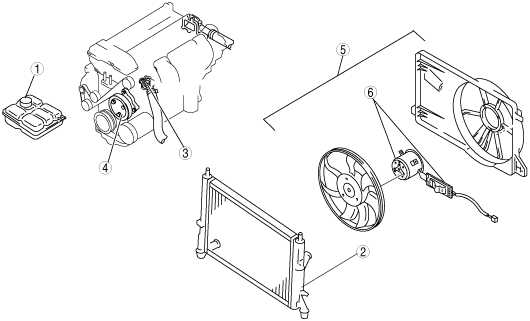

COOLING SYSTEM LOCATION INDEX[LF, L3]

id0112b5800100

am3zzw00002505

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION[LF, L3].)
2	Radiator (See RADIATOR REMOVAL/INSTALLATION[LF, L3].)
3	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION[LF, L3].) (See THERMOSTAT INSPECTION[LF, L3].)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION[LF, L3].)
5	Cooling fan component (See RADIATOR REMOVAL/INSTALLATION[LF, L3].)
6	Cooling fan motor component (See COOLING FAN MOTOR COMPONENT INSPECTION[LF, L3].)
