•  The water pump pulley, made of steel, and the water pump body, made of aluminum alloy, are integrated, and the impeller is built into the cylinder block for weight reduction.

•  The water pump is driven by the front drive belt (serpentine type).

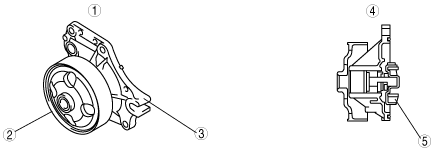

b3e0112t010

1	External view
2	Water pump pulley
3	Water pump body
4	Sectional view
5	Impeller
