COOLING SYSTEM FLOW CHART[ZJ, ZY, Z6]
id0112c1142200

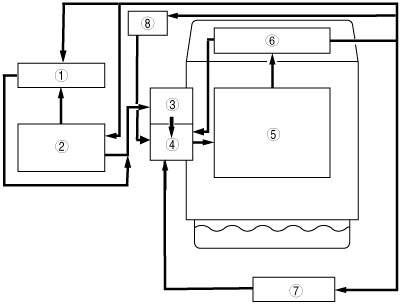

Without Throttle Valve Actuator
am3zzn00001413
|
|
1
|
Coolant reserve tank
|
|
2
|
Radiator
|
|
3
|
Thermostat
|
|
4
|
Water pump
|
|
5
|
Cylinder block
|
|
6
|
Cylinder head
|
|
7
|
Heater
|
|
8
|
IAC valve
|
With Throttle Valve Actuator
am3zzn00001363
|
|
1
|
Coolant reserve tank
|
|
2
|
Radiator
|
|
3
|
Thermostat
|
|
4
|
Water pump
|
|
5
|
EGR cooler
|
|
6
|
Throttle body
|
|
7
|
Cylinder head
|
|
8
|
Cylinder block
|
|
9
|
Heater
|
|
10
|
Oil cooler (with oil cooler)
|
