•  The water pump is mounted on the cylinder block at the timing gear end of the engine and has a plastic housing.

•  The water pump is driven by the timing belt.

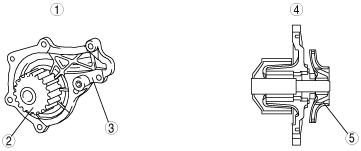

b3e0112t028

1	External view
2	Water pump pulley
3	Water pump body
4	Sectional view
5	Impeller
