•  The electric cooling fan system consists of the radiator cowling, cooling fan, and cooling fan motor components.

•  The radiator cowling and cooling fan are made of plastic for weight reduction.

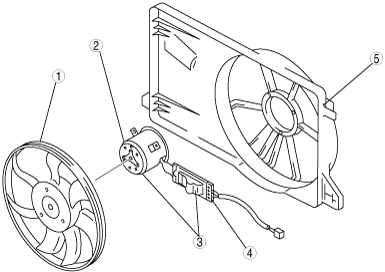

am3zzn00000551

1	Cooling fan
2	Cooling fan motor
3	Cooling fan motor component
4	Fan control module
5	Radiator cowling
