THERMOSTAT CONSTRUCTION/OPERATION[MZ-CD 1.6 (Y6)]
id0112c3100700
Construction
• The thermostat housing is flange-mounted to the cylinder head on the transmission side of the engine.
• The coolant thermostat valve and ECT sensor is integrated into the thermostat housing.
• The thermostat housing is made of plastic and cannot be disassembled.
• ECT sensor can be replaced separately.
Operation
• The coolant thermostat valve opens the flow to the radiator at a coolant temperature of 88 °C {190 °F}.
|

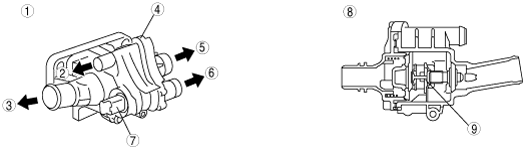

1
|
External view
|
|
2
|
To coolant reserve tank
|
|
3
|
To upper radiator hose
|
|
4
|
Thermostat housing
|
|
5
|
To coolant reserve tank
|
|
6
|
To heater
|
|
7
|
ECT sensor
|
|
8
|
Sectional view
|
|
9
|
Thermostat
|
