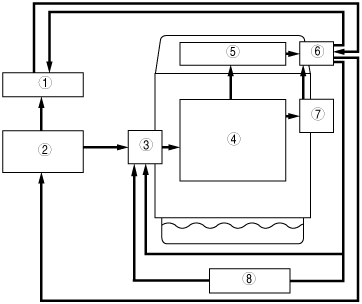

COOLING SYSTEM FLOW CHART[MZ-CD 1.6 (Y6)]
id0112c3142200
b3e0112t037
|
|
1
|
Coolant reserve tank
|
|
2
|
Radiator
|
|
3
|
Water pump
|
|
4
|
Cylinder block
|
|
5
|
Cylinder head
|
|
6
|
Thermostat
|
|
7
|
Oil cooler (Oil filter component)
|
|
8
|
Heater
|
