•  A pressed impeller has been adopted for improved efficiency and reduction in size and weight.

•  A highly reliable integrated water seal has been adopted.

•  The water pump cannot be disassembled.

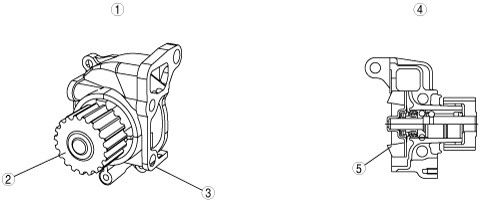

am3zzn00001520

1	External view
2	Water pump pulley
3	Water pump body
4	Sectional view
5	Impeller

•  The water pump is driven by the timing belt.
