COOLING FAN MOTOR COMPONENT CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]
id0112f1142300
Construction
• The cooling fan motor component is installed on the radiator cowling.
• The cooling fan motor component consists of the cooling fan motor and fan control module.
|
1
|
Cooling fan motor component
|
|
2
|
Cooling fan
|
|
3
|
Cooling fan motor
|
|
4
|
Fan control module
|
|
5
|
Radiator cowling
|
Operation
• The fan control module drives the fan motor based on the cooling fan control signal sent by the PCM according to the engine coolant temperature, vehicle speed, battery voltage, A/C pressure switch is on or off, and whether the A/C magnetic clutch is on or off.
• The fan control module allows continuously variable control of the fan motor rotation rate reducing fan operation noise and power consumption.
|
1
|

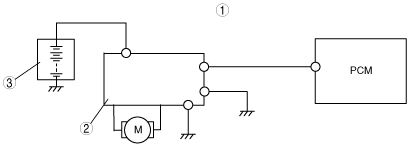

Cooling fan electrical system wiring diagram
|
|
2
|
Fan control module (Including cooling fan motor)
|
|
3
|
Battery
|
Fail-safe function
1. Over-current fail-safe
-
― If current to the fan motor exceeds the specified value, the fan control module stops the fan motor for a specified period of time.
2. Over heat fail-safe
-
― If the internal area of the fan control module exceeds the specified temperature, the fan control module stops the fan motor for a specified period of time.
3. Input signal open circuit fail-safe
-
― If there is an open circuit in the wiring harness between the PCM and the fan control module, the fan control module stops the fan motor.
4. Reversed polarity fail-safe
-
― If there is a reversed power connection, the fan control module incorporates protection against reversed polarity. The motor reacts to reversed connections with unregulated, high-speed rotation in the opposite direction.
