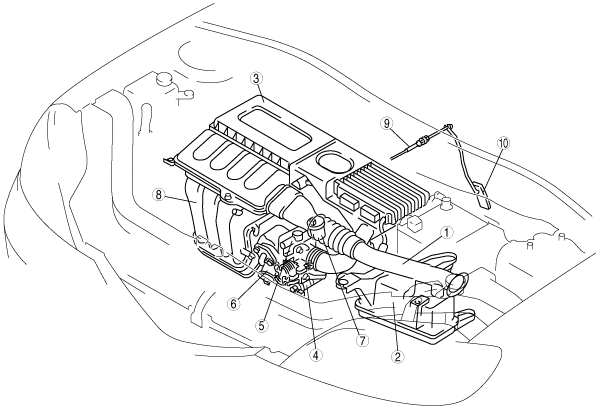

INTAKE-AIR SYSTEM STRUCTURAL VIEW[ZJ, ZY, Z6]
id0113b1100200
Without Throttle Valve Actuator
am3zzn00000287
|
|
1
|
Fresh-air duct
|
|
2
|
Resonance chamber
|
|
3
|
Air cleaner
|
|
4
|
IAC valve
|
|
5
|
Throttle body
|
|
6
|
Variable intake air shutter valve actuator (With variable intake air system)
|
|
7
|
Variable tumble shutter valve actuator
|
|
8
|
Intake manifold
|
|
9
|
Accelerator cable
|
|
10
|
Accelerator pedal
|
With Throttle Valve Actuator
am3zzn00001355
|
|
1
|
Accelerator pedal
|
|
2
|
Air cleaner
|
|
3
|
Variable tumble shutter valve actuator
|
|
4
|
Intake manifold
|
|
5
|
Variable intake air shutter valve actuator
|
|
6
|
Throttle body
|
|
7
|
Resonance chamber
|
