INTAKE-AIR SYSTEM HOSE ROUTING DIAGRAM[ZJ, ZY, Z6]

id0113b1100400

Without Throttle Valve Actuator

am3zzn00001360

1	Purge solenoid valve
2	Positive crankcase ventilation (PCV) valve

With Throttle Valve Actuator

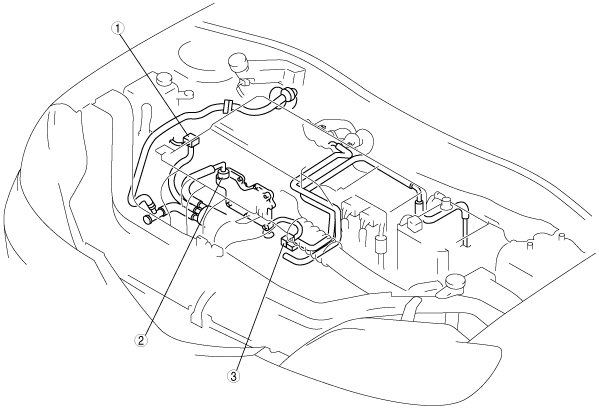

am3zzn00001387

1	MAP sensor
2	PCV valve
3	Purge solenoid valve
