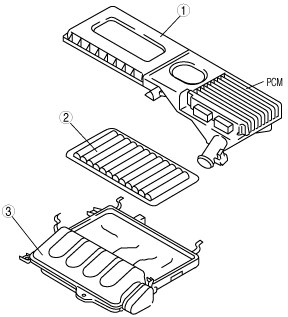

•  The air cleaner is mainly composed of the air cleaner case, air cleaner cover and air cleaner element.

•  Non-woven fabric (dry type) has been adopted.

•  The air cleaner construction suppresses intake air resistance for increased torque at all engine speeds.

•  The PCM and attached PCM case have been integrated with the cover. The PCM is forced cooled by intake air due to this integration. (See PCM CONSTRUCTION/OPERATION[ZJ, ZY, Z6].)
