INTAKE-AIR SYSTEM HOSE ROUTING DIAGRAM[LF, L3]
id0113b3100400

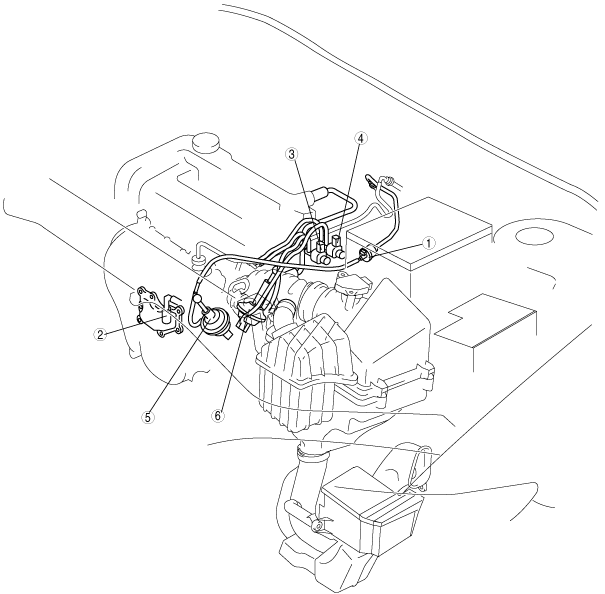

LF
am3zzn00000392
|
|
1
|
Purge solenoid valve
|
|
2
|
PCV valve
|
|
3
|
Variable intake air solenoid valve
|
|
4
|
Variable tumble solenoid valve
|
|
5
|
Variable intake air shutter valve actuator
|
|
6
|
Variable tumble shutter valve actuator
|
L3
am3zzn00001263
|
|
1
|
Purge solenoid valve
|
|
2
|
PCV valve
|
|
3
|
Variable intake air solenoid valve
|
|
4
|
Variable tumble solenoid valve
|
|
5
|
Variable intake air shutter valve actuator
|
|
6
|
Variable tumble shutter valve actuator
|
