VARIABLE TUMBLE SYSTEM STRUCTURE[LF, L3]

• Mainly consists of the variable tumble solenoid valve, variable tumble shutter valve, variable tumble shutter valve actuator, and vacuum chamber.

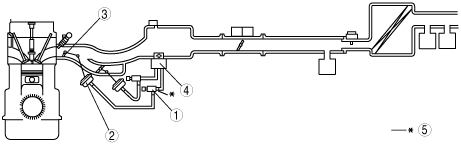

am3zzn00000180

1

Variable tumble solenoid valve

2

Variable tumble shutter valve actuator

3

Variable tumble shutter valve

4

Vacuum chamber

5

To PCM

1	Variable tumble solenoid valve
2	Variable tumble shutter valve actuator
3	Variable tumble shutter valve
4	Vacuum chamber
5	To PCM
