INTAKE MANIFOLD CONSTRUCTION/OPERATION[MZ-CD 1.6 (Y6)]
id0113b4150700
• The intake manifold is made of plastic. The intake manifold ports and the EGR ports are sealed using four seals each.
• The connection for the EGR connecting pipe is located on the intake manifold.
• The intake manifold valve housing is secured on the front side of the intake manifold using two tightening bolts.
|

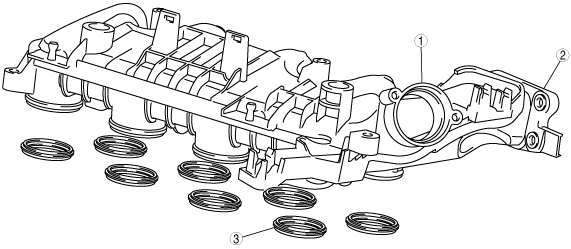

1
|
EGR connecting flange
|
|
2
|
Connecting flange, intake manifold valve housing
|
|
3
|
Intake duct sealing rings and EGR ducts
|
