•  Mainly composed of the solenoid coil, spring, and plunger.

•  During energization, the valve opens and performs linear adjustment of the pressure applied to the wastegate actuator releasing it through the air hose.

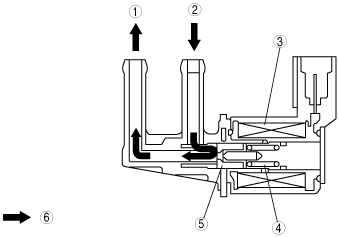

am3zzn00001146

1	To air hose
2	From wastegate actuator
3	Coil
4	Spring
5	Plunger
6	Air flow
