TURBOCHARGER CONSTRUCTION/OPERATION[L3 Turbo]
id0113b5101800
• The turbocharger consists of the turbine wheel, compressor wheel, wastegate valve, and wastegate actuator.
• When exhaust gas flows to the turbocharger turbine wheel, the coaxial compressor wheel rotates and intake air is pressurized.
• When the air charging pressure rises, the wastegate actuator opens the wastegate valve, which lowers the exhaust gas pressure, and an excessive increase of air charging pressure is suppressed.
|

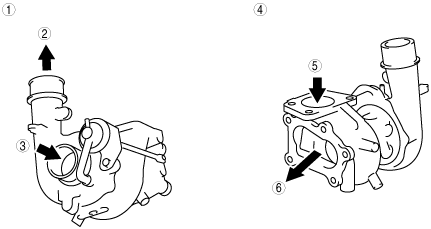

1
|
Intake air side
|
|
2
|
To charge air cooler
|
|
3
|
From air cleaner
|
|
4
|
Exhaust gas side
|
|
5
|
From exhaust manifold
|
|
6
|
To WU-TWC
|
