VARIABLE SWIRL SHUTTER VALVE ACTUATOR CONSTRUCTION/OPERATION[L3 Turbo]

id0113b5102000


Construction

•  Mainly consists of the body, rod and diaphragm chamber spring.

Operation

•  Normally, the spring force presses against the rod, keeping the shutter valve open. When vacuum is applied to the diaphragm chamber from the intake manifold, the rod is pulled, closing the shutter valve.

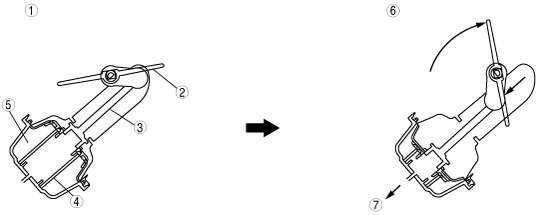

am3zzn00001147

1
Shutter valve open
2
Shutter valve
3
Rod
4
Spring
5
Diaphragm chamber
6
Shutter valve closed
7
Intake manifold vacuum
