DIRECT FUEL INJECTION SYSTEM CONSTRUCTION/OPERATION[L3 Turbo]

id0114b4100500

Construction

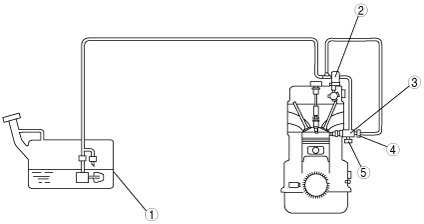

• The direct fuel injection system consists of a high pressure fuel pump, fuel injectors fuel pressure sensor, and a relief valve.

am3zzn00001154

1

Fuel tank

2

High pressure fuel pump

3

Fuel injector

4

Relief valve

5

Fuel pressure sensor

Operation

• Fuel is injected during the intake process and diffused uniformly in the combustion chamber by the flow of intake air.

• Fuel injection timing is explained in CONTROL SYSTEM and FUEL INJECTION CONTROL.
