FUEL SYSTEM STRUCTURAL VIEW[ZJ, ZY, Z6]
id0114c1100200

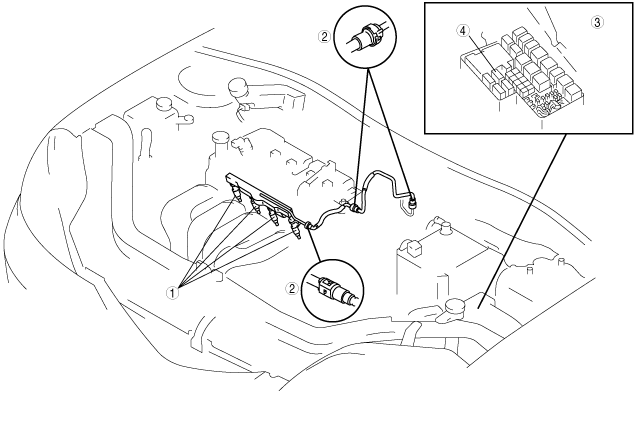

Engine Compartment Side
am3zzn00000290
|
|
1
|
Fuel injector
|
|
2
|
Quick release connector
|
|
3
|
Main fuse block
|
|
4
|
Fuel pump relay
|
Fuel Tank Side
Without the fuel filter (high-pressure)
am3zzw00000352
|
|
1
|
Fuel tank
|
|
2
|
Fuel pump unit
|
|
3
|
Quick release connector
|
With the fuel filter (high-pressure)
am3zzn00000684
|
|
1
|
Fuel tank
|
|
2
|
Fuel pump unit
|
|
3
|
Quick release connector
|
|
4
|
Fuel filter (high-pressure)
|
