FUEL SYSTEM FLOW DIAGRAM[LF, L3]
id0114c2100300
Fuel Flow
Without the fuel filter (high-pressure)
am3zzn00000396
|

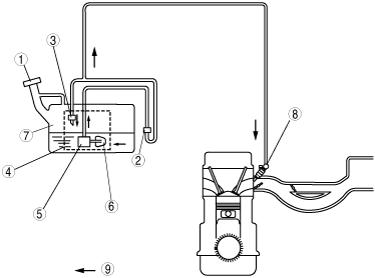

With the fuel filter (high-pressure)
am3zzn00000685
|
|
1
|
Fuel-filler cap
|
|
2
|
Fuel filter (high-pressure)
|
|
3
|
Pressure regulator
|
|
4
|
Fuel pump unit
|
|
5
|
Fuel pump
|
|
6
|
Fuel filter (low-pressure)
|
|
7
|
Fuel tank
|
|
8
|
Fuel injector
|
|
9
|
Fuel flow
|
