FUEL SYSTEM STRUCTURAL VIEW[MZ-CD 1.6 (Y6)]
id0114c3100200

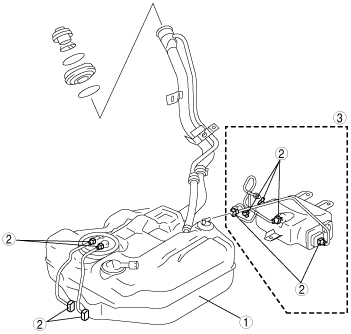

Fuel Tank Side
am3zzn00001457
|
|
1
|
Fuel tank
|
|
2
|
Quick release connector
|
|
3
|
High power-Euro 4
|

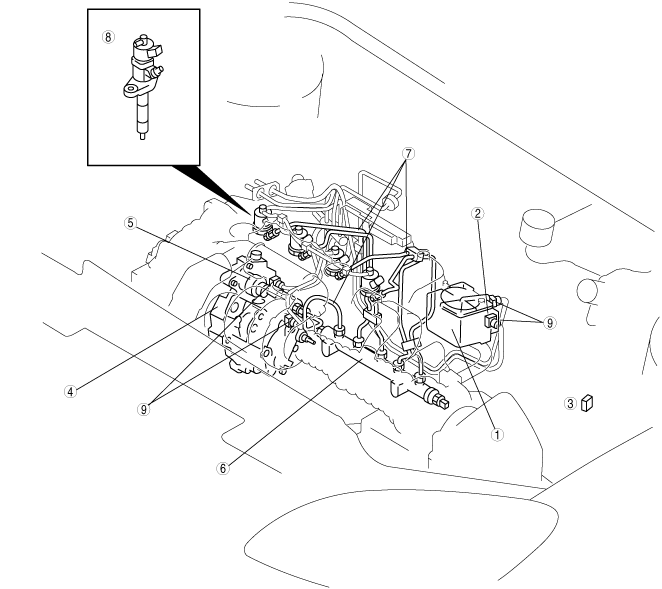

Engine Compartment Side
am3zzn00001458
|
|
1
|
Fuel filter
|
|
2
|
Fuel warmer
|
|
3
|
Fuel warmer relay (Fuse and relay box)
|
|
4
|
Fuel pump
|
|
5
|
Fuel metering valve
|
|
6
|
Common rail
|
|
7
|
High-pressure fuel pipe
|
|
8
|
Fuel injector
|
|
9
|
Quick release connector
|
