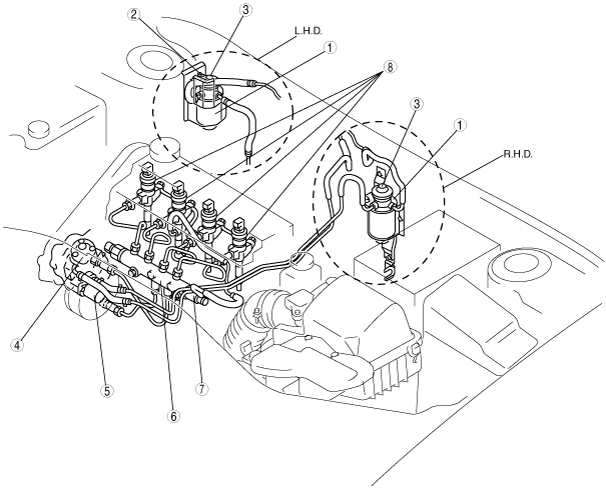

FUEL SYSTEM STRUCTURAL VIEW [MZR-CD (RF Turbo)]
id0114f1100200
Engine room side
am3zzn00001604
|
|
1
|
Fuel filter
|
|
2
|
Fuel warmer
|
|
3
|
Priming pump
|
|
4
|
Supply pump
|
|
5
|
Suction control valve
|
|
6
|
Common rail
|
|
7
|
Fuel pressure limiter
|
|
8
|
Fuel injector
|
Fuel tank side
am3zzn00001674
|
|
1
|
Fuel tank
|
|
2
|
Nonreturn valve
|
|
3
|
Fuel gauge sender unit
|
