QUICK RELEASE CONNECTOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]
id0114f1102300

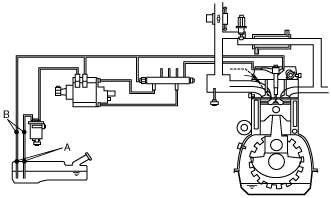

• There are two types of quick release connectors.
Quick Release Connector Type
Type A
• An SST is not used with this type.
• Consists of a retainer and O-ring. The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.
• By pushing the release tab of the retainer, the lock point is released allowing the fuel pipe to be disconnected.
|
1
|
Quick release connector
|
|
2
|
Release tab
|
|
3
|
Fuel pipe
|
Type B
• Multiple SSTs are used with this type.
|
1
|
Fuel pipe
|
|
2
|
Quick release connector
|
|
1
|
Quick release connector
|
|
2
|
Fuel pipe
|
|
3
|
Release tab
|
• Consists of a retainer and O-ring. The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.
• To connect the quick release connector properly, push it into the fuel pipe until a locking click sound is heard.
• New quick release connectors are fitted with a checker tab that prevents improper installation. This checker tab cannot normally be removed. When the quick release connector is properly connected to the fuel pipe, the lock is released and the checker tab comes off. Due to this, it can be verified that the quick release connector is completely connected.
|
1
|
Checker tab
|
|
2
|
Fuel pipe
|
