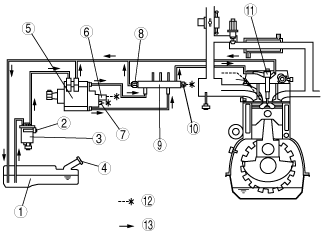

FUEL SYSTEM DIAGRAM [MZR-CD (RF Turbo)]
id0114f1573500
am3zzn00001606
|
|
1
|
Fuel tank
|
|
2
|
Fuel warmer
|
|
3
|
Fuel filter
|
|
4
|
Fuel filler cap
|
|
5
|
Supply pump
|
|
6
|
Suction control valve
|
|
7
|
Fuel temperature sensor
|
|
8
|
Fuel pressure limiter
|
|
9
|
Common rail
|
|
10
|
Fuel pressure sensor
|
|
11
|
Fuel injector
|
|
12
|
To PCM
|
|
13
|
Fuel flow
|
