ROLLOVER VALVE CONSTRUCTION/OPERATION[L3 Turbo]


id0116b4103000

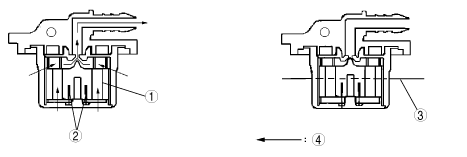

•  When the fuel flows into the rollover valve, the float (valve) closes the flow passage by relation of float weight, spring force and float floating force.
am3zzn00001176

1
Float
2
Spring
3
Fuel level
4
Evaporative gas flow
