CHARCOAL CANISTER REMOVAL/INSTALLATION[L3 Turbo]
id0116b4801500

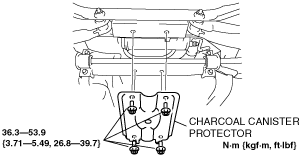

1. Remove the charcoal canister protector.
c3u0116w051
|
2. Remove the dynamic damper. (See REAR CROSSMEMBER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Verify that the rear wheel alignment is within the specification. (See REAR WHEEL ALIGNMENT.)
am3zzw00003138
|
|
1
|
Quick connector (Type C)
|
|
2
|
Quick connector (Type B)
|
|
3
|
Charcoal canister
|
Charcoal Canister Removal Note
1. Support the rear crossmember using a transmission jack.
2. Remove the rear wheels.
3. Disconnect the ABS wheel-speed sensor wiring harness connector.
4. Disengage the brake pipe mount from bracket.
c3u0116w053
|
5. Remove the rear shock absorber lower bolts. (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.)
6. Loosen the rear crossmember installation bolts (6 locations) and lower the rear crossmember approx. 140 mm {5.5 in}. (See REAR CROSSMEMBER REMOVAL/INSTALLATION.)
7. Remove the installation bolts and remove the charcoal canister.
