EGR SYSTEM STRUCTURE[ZJ, ZY, Z6]

id0116c1100600


With Throttle Valve Actuator Only

•  Consists of an EGR valve, EGR cooler and EGR pipe to conduct exhaust gas to the intake air system.

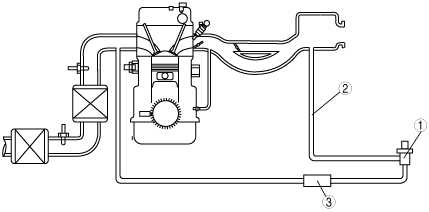

System diagram

am3zzn00001396

1
EGR valve
2
EGR pipe
3
EGR cooler
